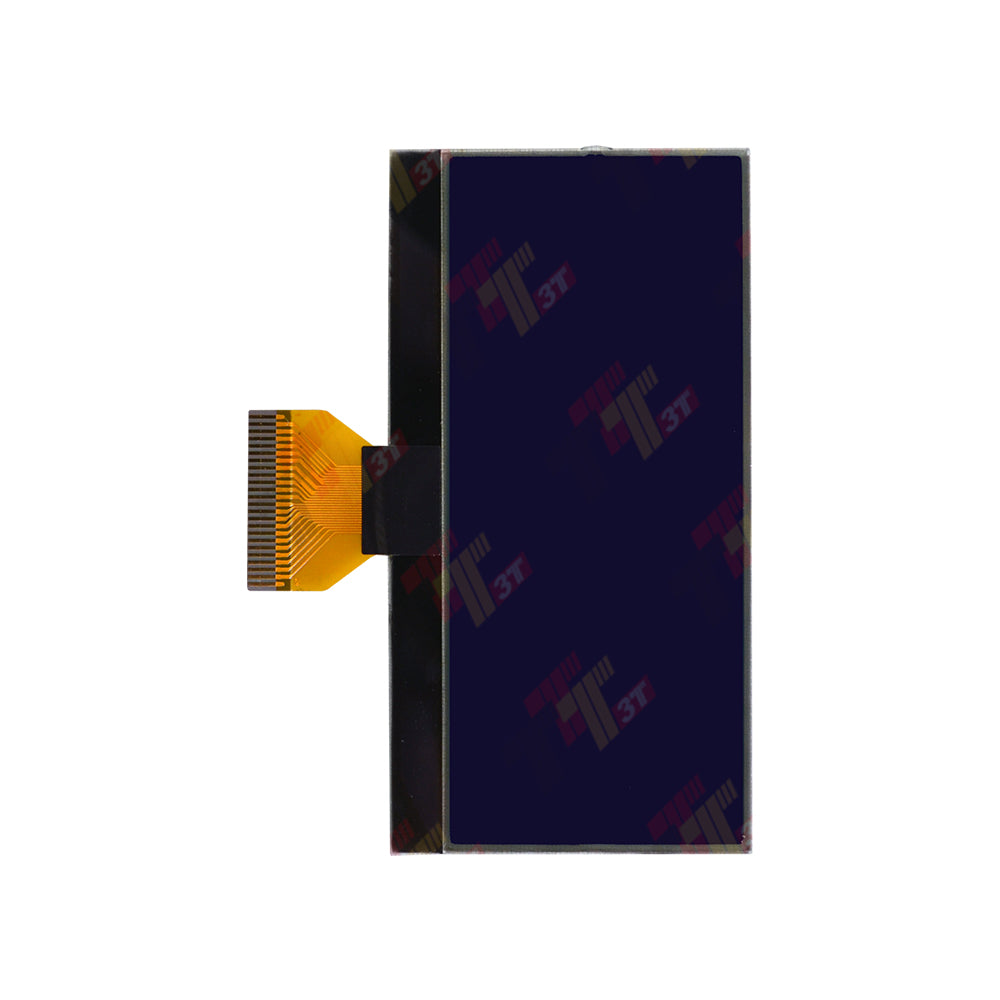

Display for Mercedes A/B-Class W169 W245 Instrument Cluster 8 Volt Version



Application:
Mercedes A-Class W169/C169 (2004-2012)
Mercedes B-Class W245 (2005-2011)



You don't have to solder it but inserted in the connector on the board.



Screen Size: 97*50mm  164*64 pixel



Display for Mercedes A/B-Class W169 W245 instrument cluster have 7 Volt and 8 Volt version.



Display 7 ∕ 8 volts test way.

Special Mercedes removal hooks are needed to remove instrument cluster (easily could be bough at ebay or from MB). Cluster must be removed from the vehicle and its rear cover removed (4 screws). During the measuring cluster must be powered up. You can do it either connecting it back to the vehicle and turn on ignition to position 2, or it is also possible to power it up without the car (12V external power supply at least 1A). Turn on the dashboard（white connector：PIN no.1 GND;PIN no.5，PIN no.6 +12v）and use a multi-meter to check the voltage between the points. If it goes from -6.8v and -7.2v you have to put 7V display on. If the voltage is included between -7.8v and -8.2v, you have to install 8v display. (See picture no.3 attached)



For Mercedes A ∕ B Class  W169 W245 dashboards display 7 volt version

You can get it at our eBay llink https://www.ebay.com/itm/264564278556



Usage:

Repair by hand, Once installed, it is ready for use.



Package include:

1PCS LCD Display, 8 Volt Version.

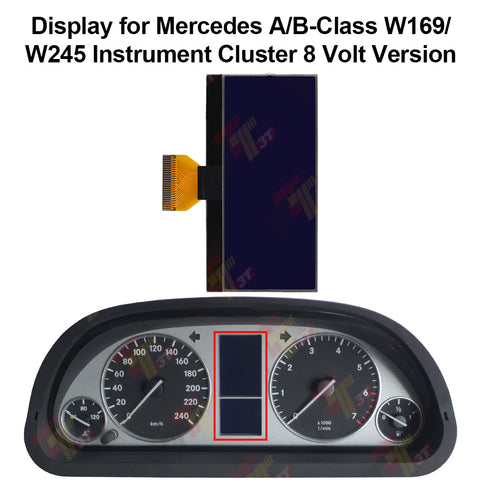

We selling LCD display only, the instrument cluster in picture as an application scenario instruction, not included for sale.
